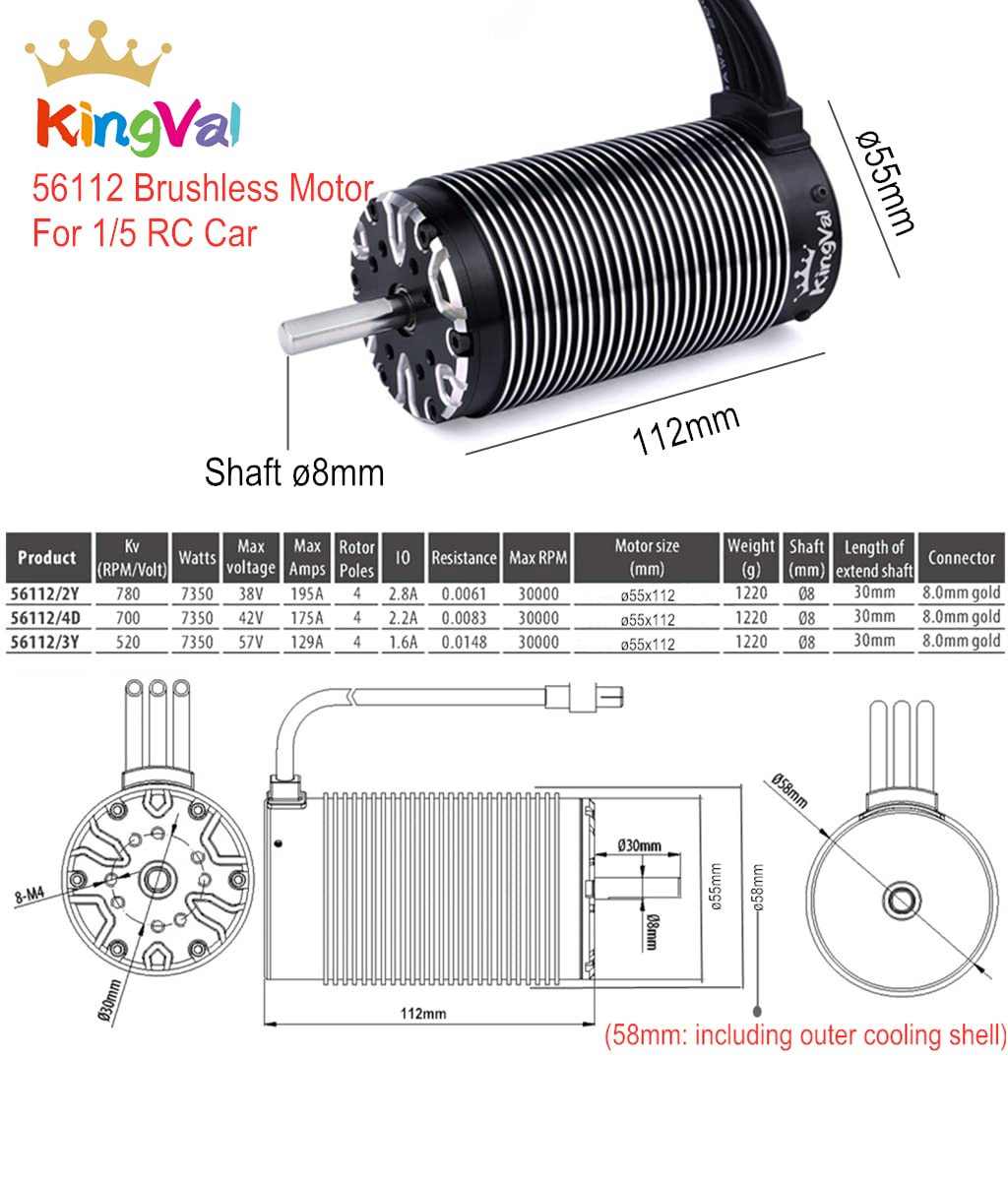

KingVal Replacement 56112 520KV Sensorless Brushless Motor Shaft Diameter 8.0mm Compatible with 1/5 RC Car
Product details
| Management number | 216419039 | Release Date | 2026/04/19 | List Price | $54.67 | Model Number | 216419039 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Features:*4 Poles 12-Slot Hi-torque Motor Design*CNC Machined 6061 T6 Billet Aluminum Heat sink Can*High Purity Copper Windings Maximizes Efficiency*High RPM ABEC5 Over sized Bearings*Universal fit, fits all 1/5 brushless cars-multi-mounting system for M4 screws*Precision balanced rotor,smoothness for best reliability and maximum RPM*Stator - Super Thin (0.2mm) Laminations*Removable/Replaceable Rotor*Precision Engineered for Maximum Energy ConversionSpecification:Brand: KingValProduct: 56112 Brushless MotorKV(RPM/Volt): 520KVWatt:7350Max voltage: <57VMax amps: 129ARotor poles: 4IO: 1.6AResistance: 0.0148Max RPM: 30000Length of extend shaft: 30mmShaft diameter: 8mmConnector: 8.0mm goldMotor Size: ø55*112mmWeight:1260gPackage List:1 x 56112 Brushless Motor1 x User Manual
- 4 Poles 12-Slot Hi-torque Motor Design; Motor shaft diameter and connectors are both 8.0mm
- CNC Machined 6061 T6 Billet Aluminum Heat sink Can
- High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Over sized Bearings
- Universal fit,fits all 1/5 brushless cars-multi-mounting system for M4 screws
- Removable/Replaceable Rotor; Precision Engineered for Maximum Energy Conversion
| Model | 8mm 56112 520KV 8.0 |
|---|---|
| Brand Name | KingVal |
| Horsepower | 7350 Watts |
| Item Weight | 1350 Grams |
| Manufacturer | KingVal |
| Material Type | Aluminum |
