ANNKE 32 Channel 12MP Security Network Video Recorder - Supports 32x 12MP/4K IP POE Camera Input, 16-Channel Power Over Ethernet and 16 Port PoE Switch，Supports 4 SATA up to 48TB HDD (Not Included)

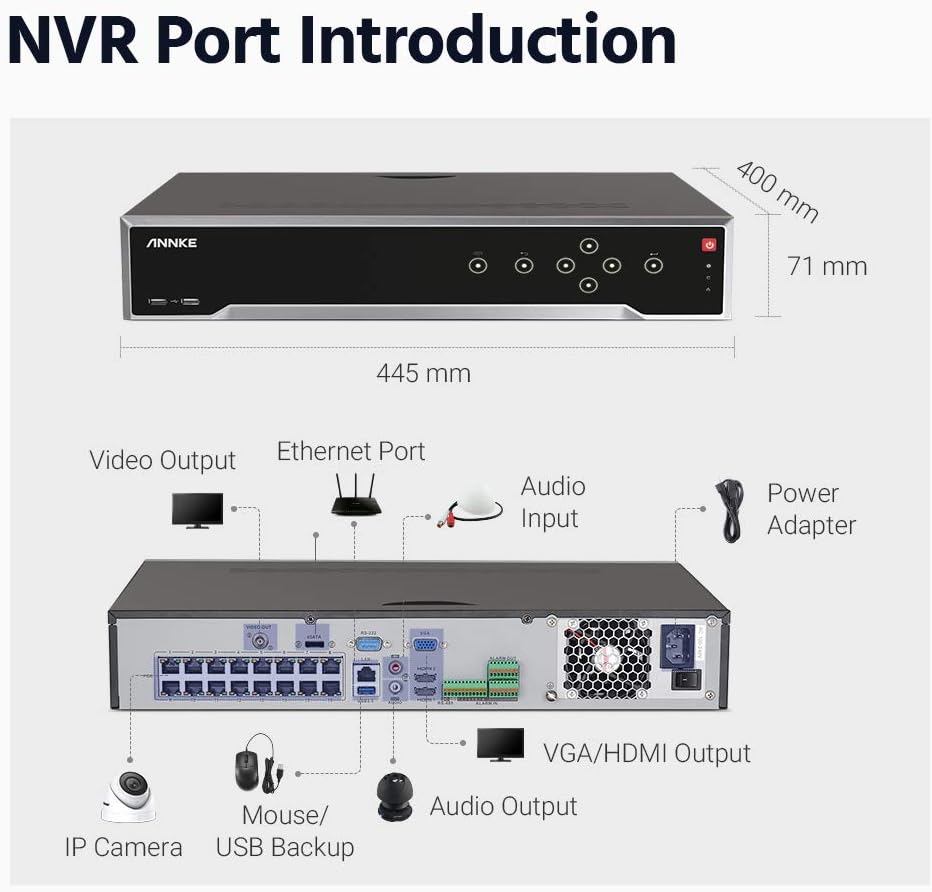

Product Description: This ANNKE 32 channel PoE network video recorder supports 24/7 recording with up to 32 PoE IP cameras simultaneously. The compatibility enables the NVR to integrate with almost all brands’m PoE IP security cameras (up to 12MP 4K Ultra HD resolution). Main Feature Overview . Support up to 32 PoE Cameras . Support up to 12MP Stream . Advanced H.265+ Video Format . Remote Access Anywhere Anytime . 4K HDMI & 1080p VGA Output Specifications Video Compressio: H.264+/H.264/H.265/H.265+/MPEG-4 IP Video Input: 32 Channel (Include 16 Channel PoE) Video Output: HDMI up to 4K; VGA up to 1080p Audio Input/Output: 1/1 RCA Incoming Bandwidth: 256 Mbps Resolution: Up to 12MP Max Playback Resolution: Up to 12MP Max Playback Channel: 16 Channel Max Playback Capacity: 2CH @12MP (20 fps)/4CH @8MP (25 fps) HDD: 4 SATA Interface HDD Capacity: Up to 12 TB Capacity for Each HDD Network Interface: RJ45 X1 (10/100/1000 M) PoE: 8 Ports (IEEE802.3at/af) Alarm Input/Output: 16/4 Serial Interface: 1 RS-485 (Half-Duplex), 1 RS-232 USB: Front Panel: 2X USB 2.0; Rear Panel: 1X USB 3.0 Operating Power: DC 48 V What’s in the Box 1X 16 Port PoE Switch 1X 32CH 12MP NVR 1X USB Mouse 1X Power Adapter 1X 1M Network Cable 1X User Manual

• 【Up to 12MP 4K Ultra HD Stream】 This 32 channel NVR supports up to12MP 4K PoE IP cameras for Ultra HD live stream, recording and playback. Get 24/7 record for not missing even a single detail. Connect 16 PoE cameras to the NVR directly via the 16 ports, and expand 16 more cameras with a PoE switch.
• 【Save More Videos with H.265+ Video Format】 The network video recorder adopts the latest H.265+ video format for smoother stream and longer recording time. Save more videos without sacrificing the image quality by inserting up to 4 hard disk drives (max. 48 TB in total).
• 【Work with Almost PoE IP Cameras】 ANNKE PoE NVR supports ANNKE PoE IP cameras and other third-party network security cameras (up to 12MP) for the most powerful compatibility. Connect any PoE CCTV cameras to the NVR for smartest integration.
• 【Remote Access with All Devices】 Manage the whole Internet security camera system by controlling the NVR via your iPhone, Android smartphones, Mac/Windows computers, PC, tablets, browsers remotely, when you are in the office, shopping, travelling or just anywhere.
• 【Up to 4K Ultra HD HDMI & 1080p VGA Output】 Link the NVR to a 4K TV for local 4K live stream with an HDMI cable, or connect it to a computer monitor to get instant 1080p Full HD with the VGA output. The smart search & playback function enables the users to locate the motion videos directly for fast replay.
